Tap and Die Set 115pce Tap and Die Set 115pce

Tap and Die Set 115pce

  • Product Code: 7117
  • Brand: TradeQuip
  • Trade Price: $246.00 ex GST

This TradeQuip Tap and Die Set is "Made for the Trade" quality that contains a combinations of popular metric and SAE taps and dies. Manufactured from premium quality heat treated, rust resistant alloy tool steel and packaged in tough, compact, blow moulded case, the precision machined taps and dies feature a Rockwell hardness of 55 HRC. This set Includes die handles and tap wrenches, drill bits, screw extractors, a centre punch, a screw driver and thread pitch gauges which all fit in a blow mould storage case. This handy tap and die set includes a compartmentalised carrying case for easy identification and organisation and two thread pitch gauges to quickly identify the right thread. The trade quality set will cover most (if not all) your tap and die needs and is sure to become your go-to tool for creating and repairing studs and bolts when you really need them!
Features:
  • Cuts and renews external and internal threads to exacting standards
  • Contains most popular sizes
  • Heat treated and hardened
  • Precision ground
  • Alloy tool steel construction
  • Compartmentalised storage case
Specifications:
  • 115 Piece Set

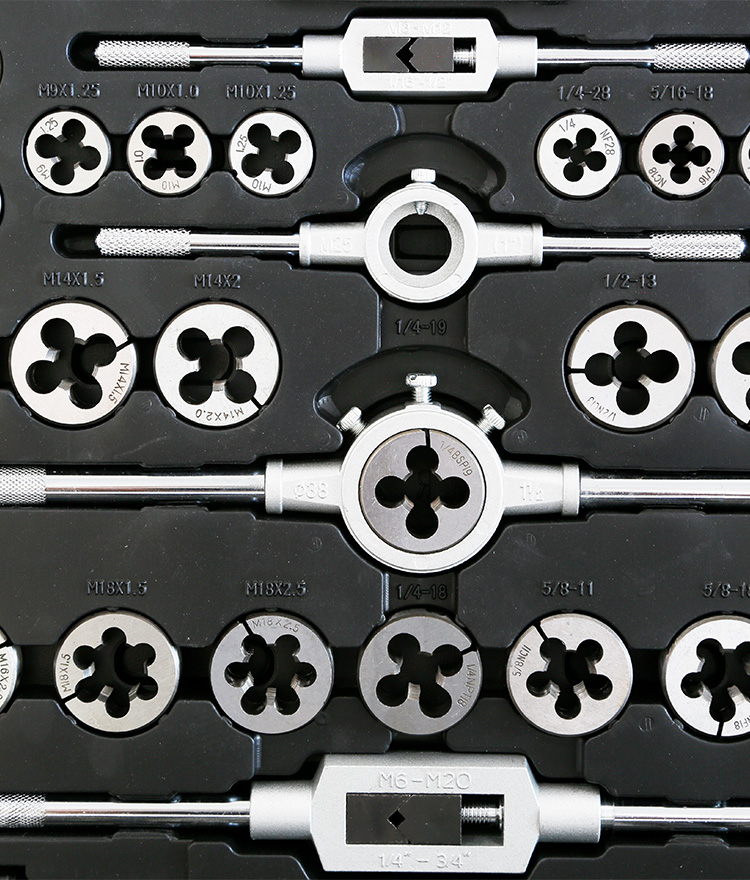

  • Die Sizes (48pce):
  • 4-NC40,5-NC40,6-NC32,8-NC32,10-NC24,10-NF32,12-NC24
  • 1/4-NC20,1/4-NF28,5/16-NC18,5/16-NF24,3/8-NC16,3/8-NF24,7/16-NC14,7/16-NF20,1/2-NC13,1/2-NF20,9/16-NC12,9/16-NF18,5/8-NC11,5/8-NF18,3/4-NF16,3/4-NC10
  • 2x0.4,3x0.5,4x0.7,5x0.8,6x1.0,7x1.0,8x1.0,8x1.25,9x1.25,10x1.0,10x1.25,10x1.5,11x1.5,12x1.75,12x1.25,14x2.0,14x1.5,16x2.0,16x1.5,18x2.5,18x1.5
  • 18NPT27,1/8BSP,1/4NP18,14BSP19

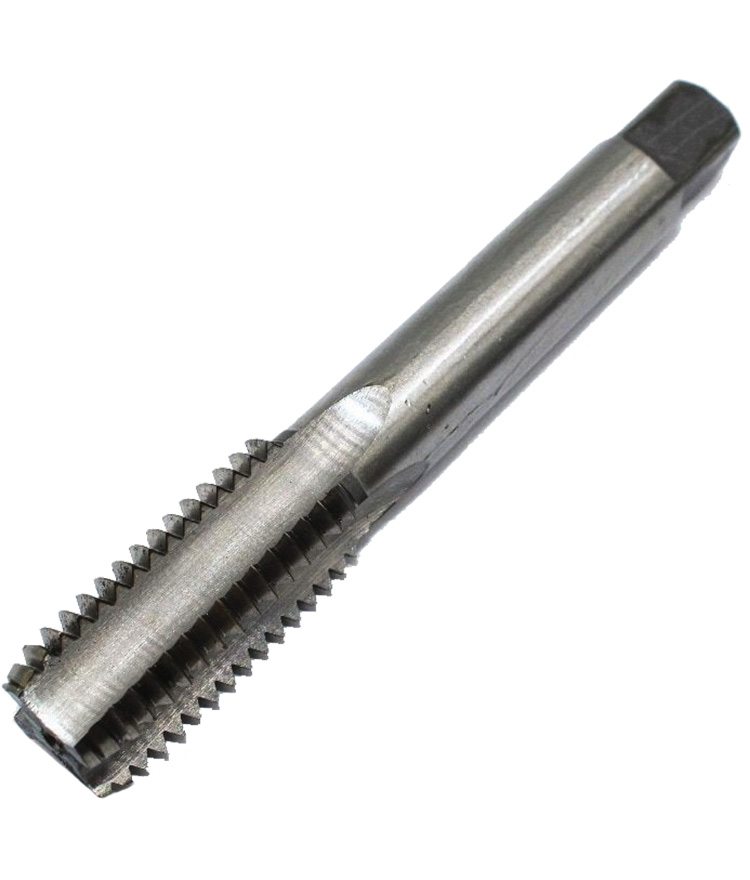

  • Tap Sizes (48pce):
  • 4-NC40,5-NC40,6-NC32,8-NC32,10-NC24,10-NF32,12-NC24
  • 1/4-NC20,1/4-NF28,5/16-NC18,5/16-NF24,3/8-NC16,3/8-NF24,7/16-NC14,7/16-NF20,1/2-NC13,1/2-NF20,9/16-NC12,9/16-NF18,5/8-NC11,5/8-NF18,3/4-NF16,3/4-NC10
  • 2x0.4,3x0.5,4x0.7,5x0.8,6x1.0,7x1.0,8x1.0,8x1.25,9x1.25,10x1.0,10x1.25,10x1.5,11x1.5,12x1.75,12x1.25,14x2.0,14x1.5,16x2.0,16x1.5,18x2.5,18x1.5
  • 18NPT27,1/8BSP,1/4NP18,14BSP19
  • 2x Die Handles, 2x Tap Wrenches, 1x T-Type Tap Wrench
  • 2x Screw Pitch Gauges, 1x Centre Punch, 1x Screwdriver
  • Drill Bits 5pce: 2.5, 3.3, 4.2, 5, 6.8mm.
  • Screw Extractors 5pce: 1#, 2#, 3#, 4#, 5#
  • Weight: 7kg
  • Carton 460 x 350 x 50mm

Print Version            Product Guide

About theTradeQuip brand

The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment by professional users. With proven and trusted “Made for the Trade” reliability, 'TradeQuip'  branded products offer the very best in performance for an affordable price. All backed by a 1year trade guarantee across 1,000+ distributors Australia wide.
